Electric Infrared Heaters
Solarbeam™ Quartz Lamp Heaters
Aitken's Solarbeam universal quartz lamp infrared heaters are built for all-weather indoor or outdoor use, and can reduce electric heating costs by up to 20% compared to forced air or convection systems.
Why Solarbeam
Features
All-Weather Rated
Accommodates both indoor and outdoor installations without special enclosures.
Two Connector Options
Choose push/pull spring-loaded silver-tipped contacts (butt socket) or pigtail connections.
Flexible Mounting
Compatible with stem mounting to a supporting surface.
Installation requirements: Minimum mounting height of 10 feet, with at least 24″ clearance from vertical surfaces. Supply wire must be rated for at least 75°C (167°F).
Model Specifications
Quartz Lamp Models
| Model | Watts | Volts | Amps |
|---|---|---|---|
| P70010 | 500 | 120 | 4.17 |
| P70013 | 1,600 | 208 | 7.69 |
| P70014 | 1,600 | 240 | 6.67 |
| P70015 | 1,600 | 277 | 5.78 |
| P70016 | 2,500 | 480 | 5.21 |
| Model | Watts | Volts | Amps |
|---|---|---|---|
| P80005 | 500 | 120 | 4.17 |
| P80208 | 1,600 | 208 | 7.69 |
| P80240 | 1,600 | 240 | 6.67 |
| P80277 | 1,600 | 277 | 5.78 |
| P80480 | 2,500 | 480 | 5.21 |
Accessories
- Recessing Frames: PA 9700, PA 9700-1
- Wire Guards: P54580-2, P54580, P54580-1, P54581, P54581-1, 54583-1, 54583
Real-World Installations

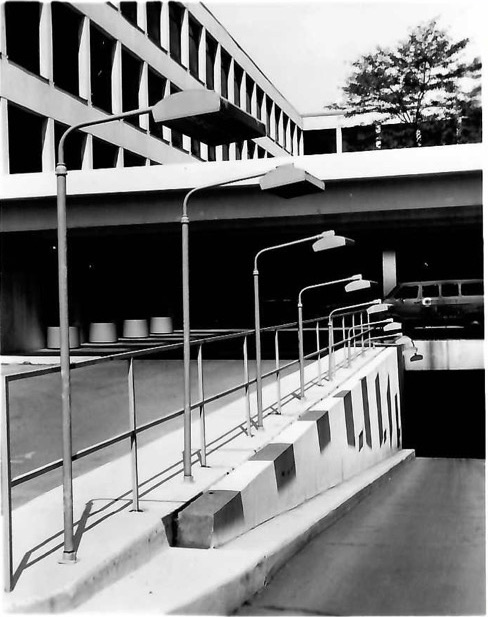

Snow Melting & People Heating
